PVC Ball Valves

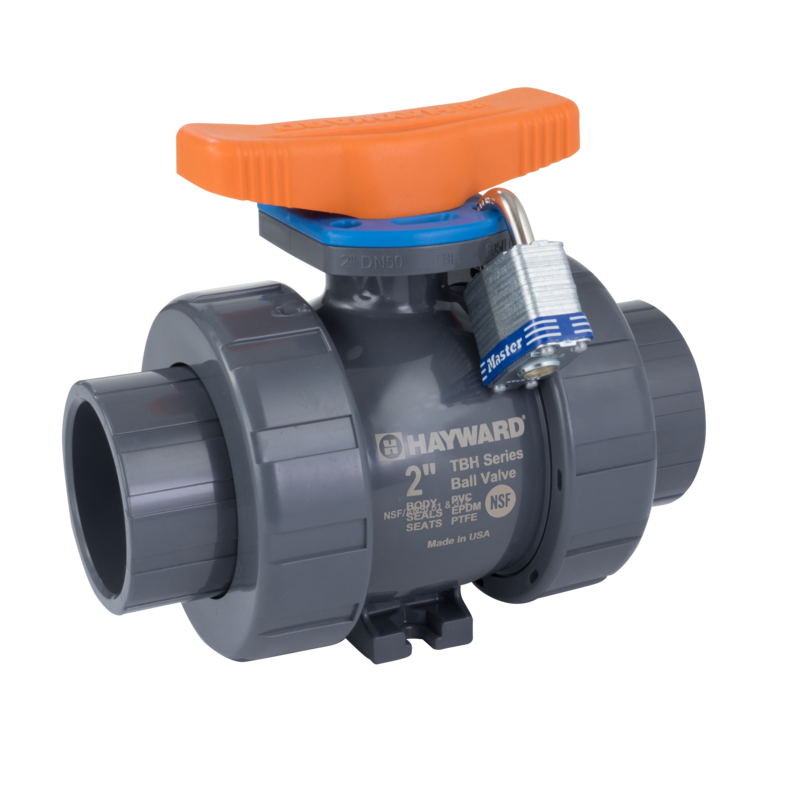

The TBH Series features a low maintenance design with its new System2 Sealing Technology for sizes up to 2”/DN50. Sizes 2-1/2” through 6” feature have energized PTFE seats with backing O-ring as standard. All seats are reversible to allow easy field rebuild. Assisting users in protecting property and life, a standard integral lock-out feature secures onto the body of the valve. Actuator ready design with ISO 5211 pattern – on all sizes. Available in sizes 1/4˝ through 6” / DN15 – DN150 in PVC and CPVC materials. The TBH Series are fully pressure rated for 250 PSI / PN16 at 23°C non-shock up to 2”/DN50. Sizes 2-1/2”/DN65 – 4”/DN100 sizes are pressure rated for 235psi at 23°C non-shock. Lastly, the TBH is available with IPS or DIN/EN and JIS socket, threaded and flanged end connections.

Categories: ,
For more information about PVC Ball Valves please call us on 01 4614300 or email one of the sales team at enquiries@modernplant.ie or visit us at the trade counter on the Naas Road in Dublin.
